Swing Carriages
Cornerstone Industries’ Sidewinder II Swing Carriage & Work Platform for telehandlers and forklifts
gives you a full 180 degree rotation making it safer and easier to do your job.
Swing Carriages
Cornerstone Industries’ Sidewinder II Swing Carriage & Work Platform for telehandlers and forklifts gives you a full 180-degree rotation making it safer and easier to do your job.

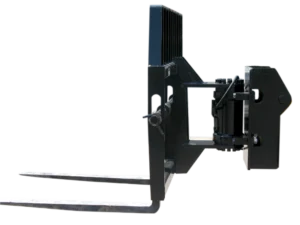

Quality Manufactured Sidewinder II 180° Swing Carriage
Cornerstone Industries’ Sidewinder II Swing Carriage & Work Platform for telehandlers and forklifts gives you a full 180 degree rotation making it safer and easier to do your job.
FULL 180 DEGREES OF ARTICULATION
Highly customizable with several sizes and capacities available as well as custom mounting plates to support a wide range of telescopic forklift models. With the help of its built-in braking system, this carriage prevents unwanted swing and safely supports heavier loads thanks to laboratory-tested load ratings with a 3-to-1 safety factor.
Very smooth left and right swing for load handling stability. Left & right swing controlled by auxiliary hydraulics joystick in the forklift cab
Tough exclusion seals minimize ingress of dirt and moisture; grease ports enable contaminants to be flushed from bearings; no exposed gears or teeth increasing actuator life and safety; sealed systems protects against harsh elements and conditions allowing the 180 degree swing carriage to be used in various environments and conditions

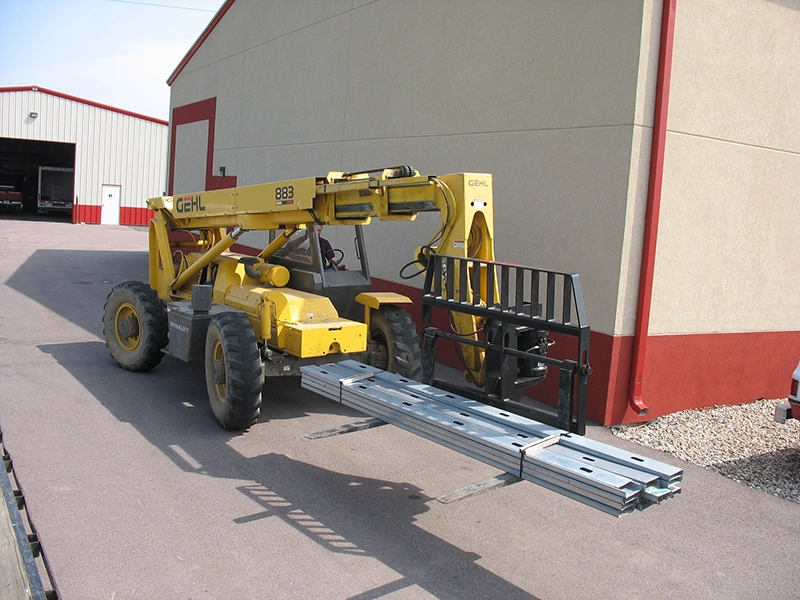

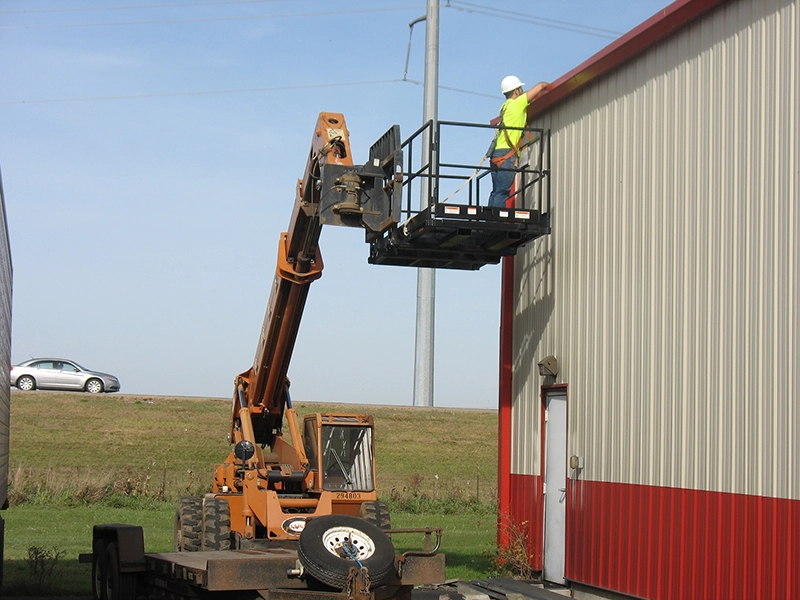

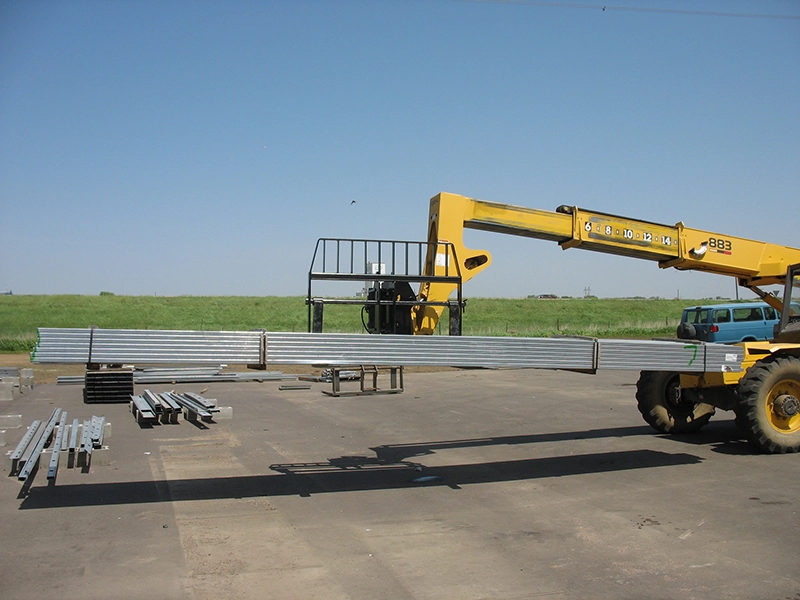

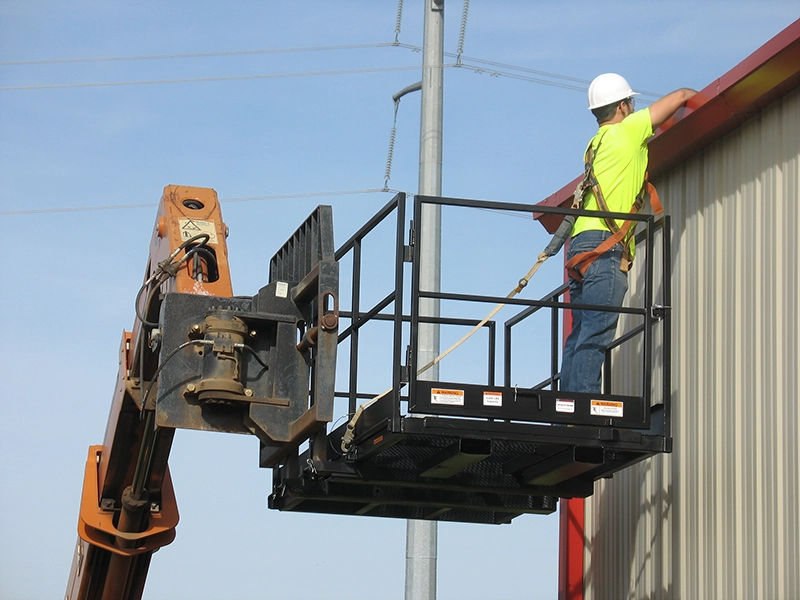

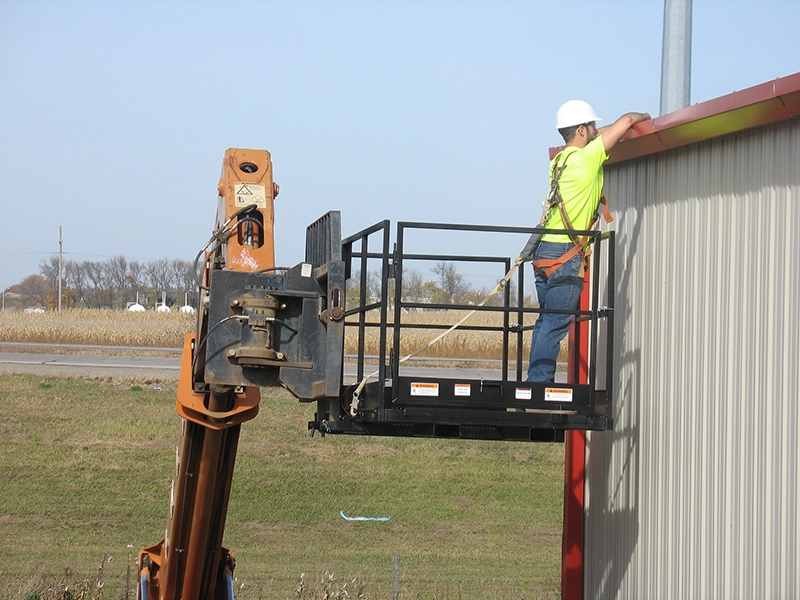

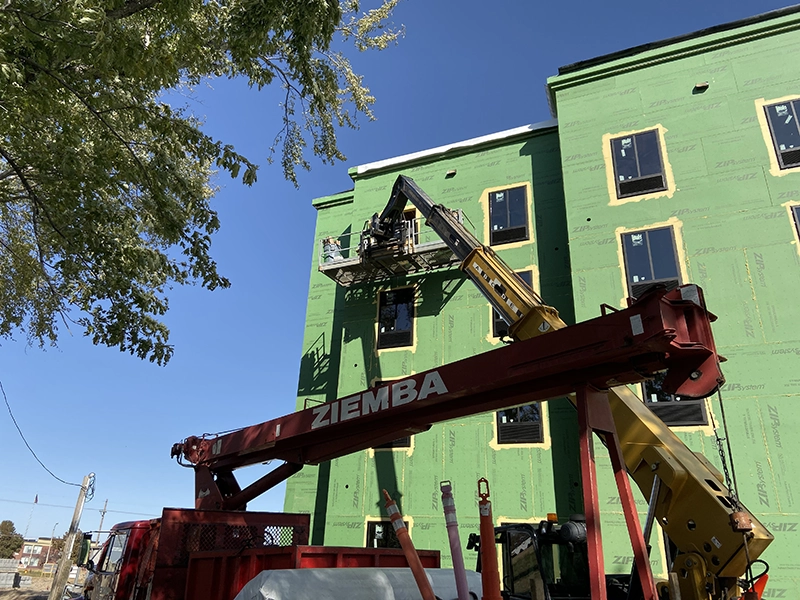

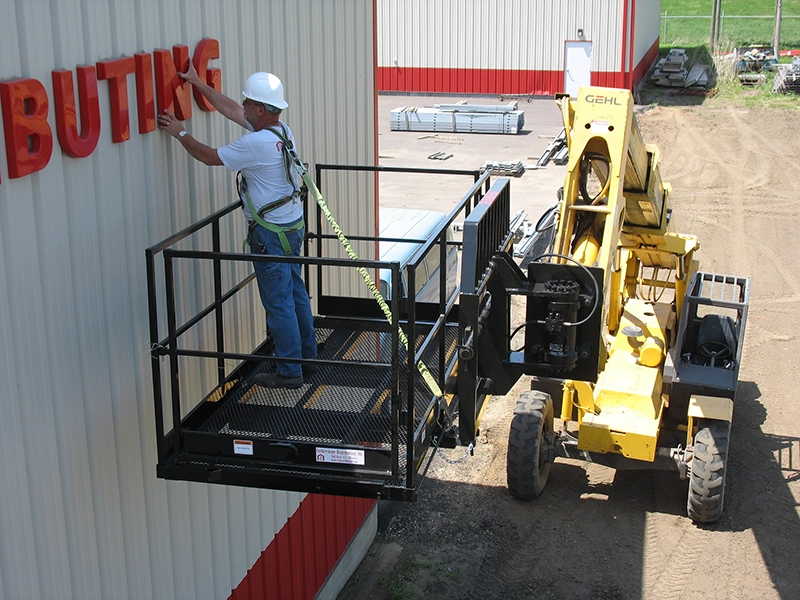

The Sidewinder II is a telehandler swing carriage with a full 180 degrees of articulation and excellent load handling stability for carrying steel beams, lumber, piping, and other longer materials. A hydraulic joystick in the cab controls left and right swing, and offers enhanced maneuverability for getting materials or man baskets into tight quarters. Save time and money by positioning materials parallel to the work surface and stocking the upper levels of construction projects with ease.
The Sidewinder II has a standard maximum weight capacity of 8,000-16,000 lbs and a capacity of 4,000 pounds when rotated 90° to the left or right.
Innovative sliding spline operation distributes loads equally over all teeth resulting in outstanding resilience to shock loads and unparalleled holding capability making our 180 degree swing carriage one of the strongest unit available
Strength & Durability

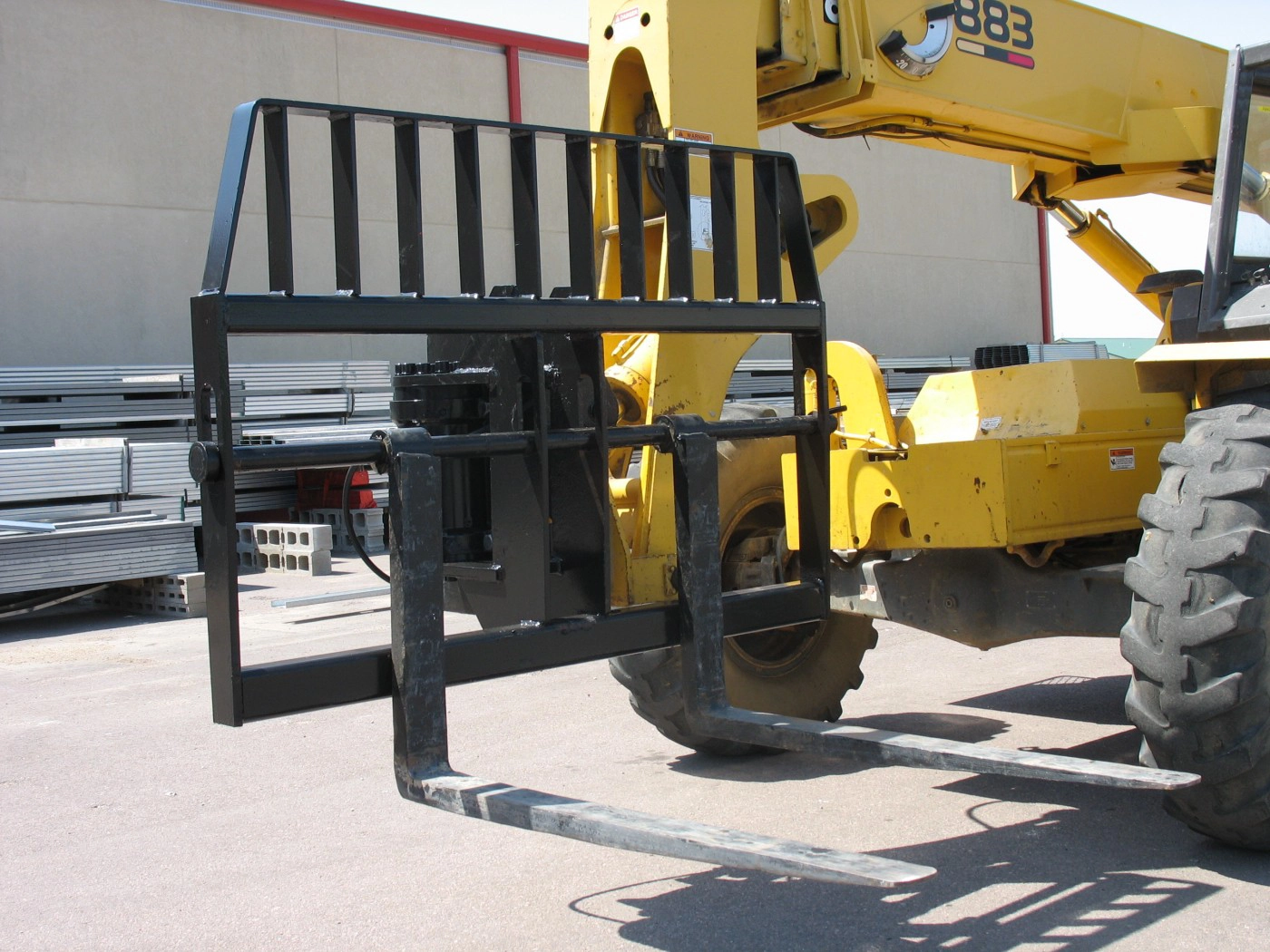

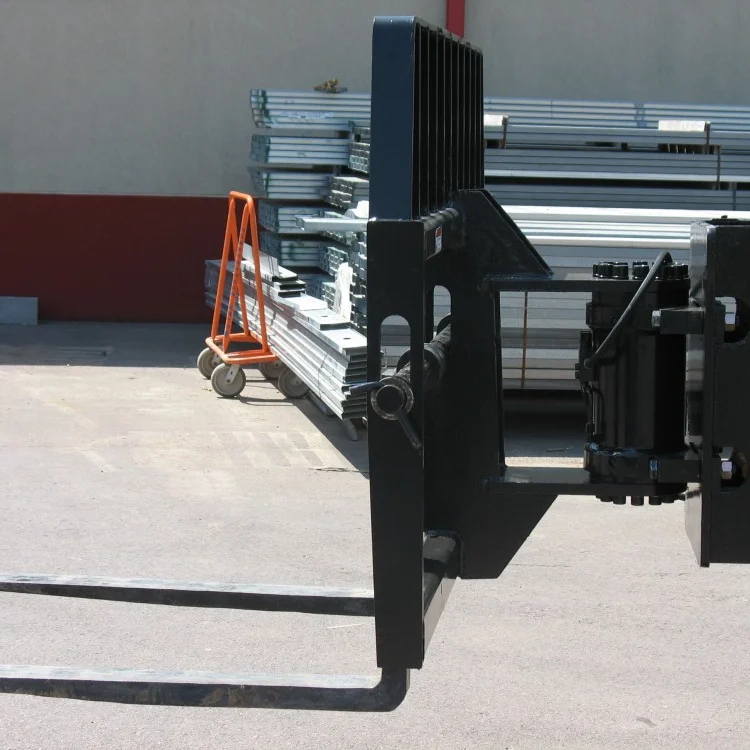

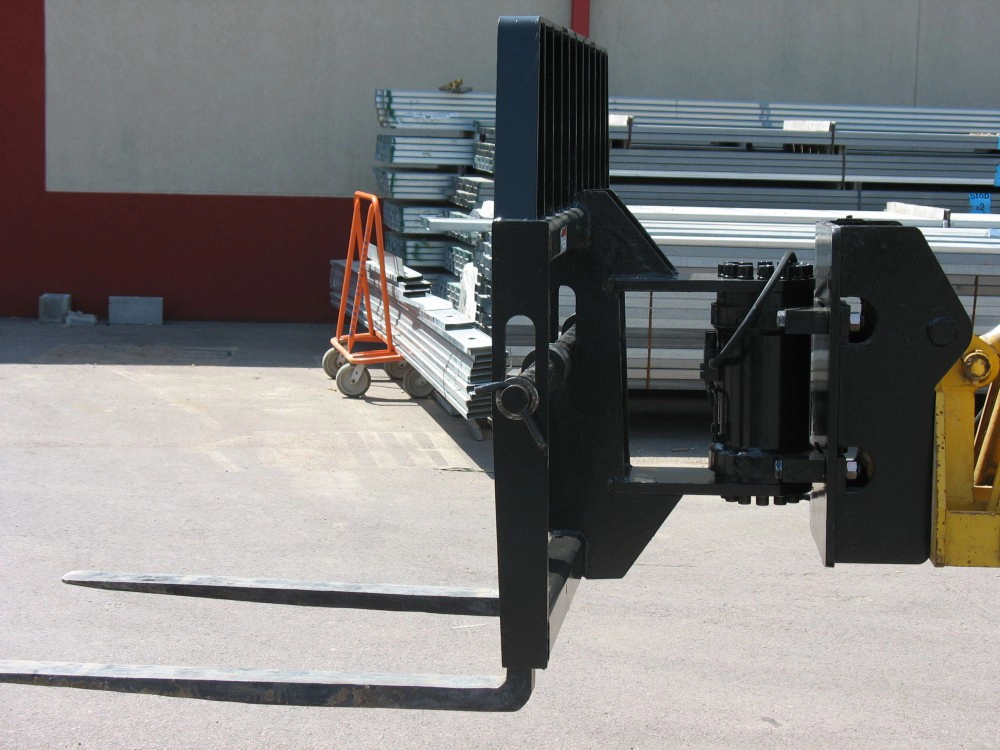

The rotary actuator on the Sidewinder II is ultra-compact but still strong enough to handle heavy-duty applications.
The straddle mount feature ensures the load is supported on both ends of the shaft and complements the sliding spline design of the swing carriage to improve weight distribution and increase resiliency to shock loads. Protective seals located throughout the rotary actuator protect internal components from the elements, including dirt and moisture, and grease ports make it easy to flush contaminants away from bearings to extend their lifecycle.
Additional Fork Carriages & Accessories:
Available for telehandlers and forklifts
- Standard Fork Frame Carriage
- HD Fork Frame Carriage
- ITA Fork Carriage
- Shaft Mount & ITA Fork Tines
- Telehandler Fork Carriage with Left/Right Fork Tilt

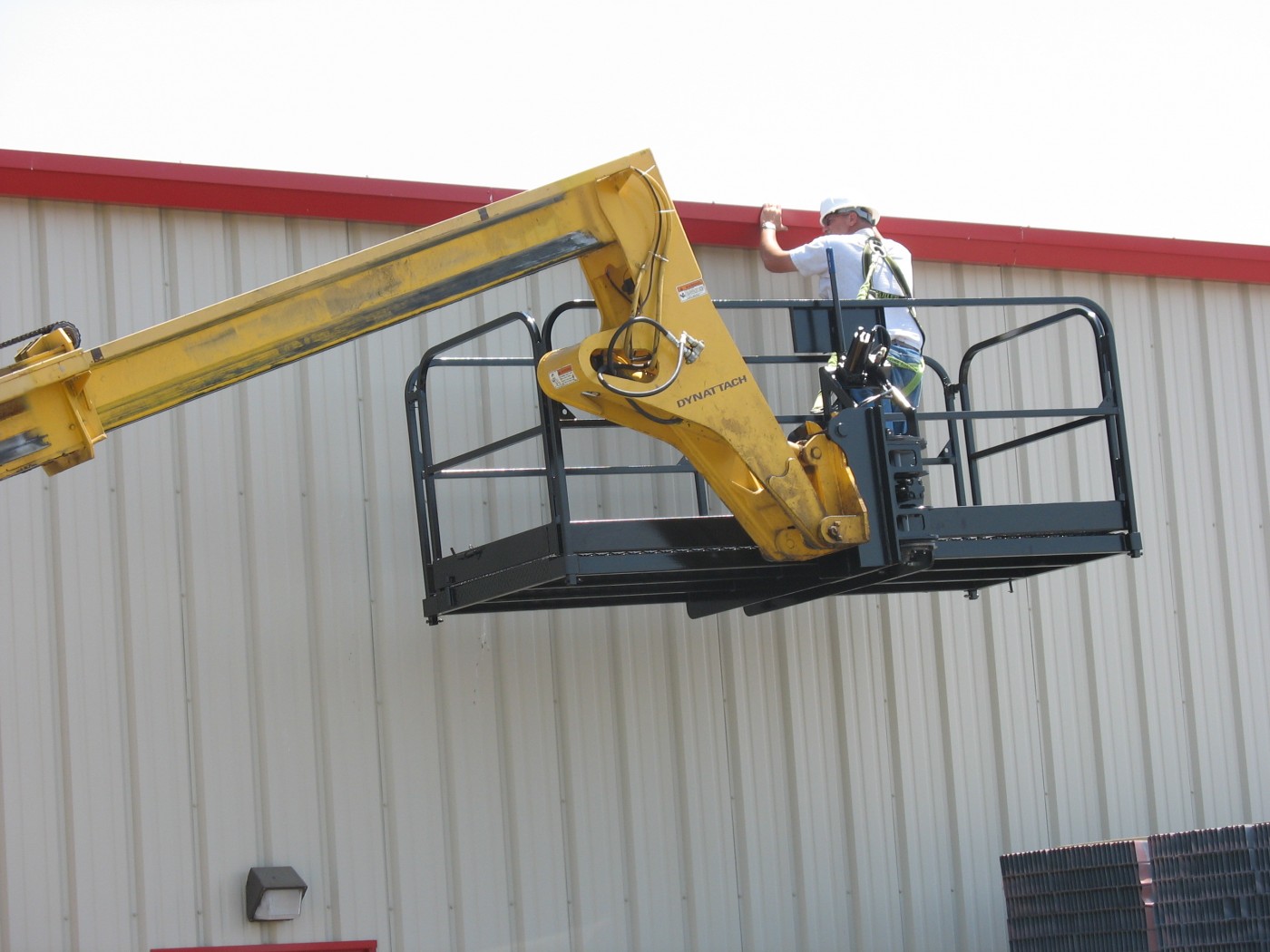

- Platform Sidewinder
- Fork Positioner Carriage
- Side Shift Carriage
Skid Steer Attachments
Upgrade your skid steer with high-quality attachments from Cornerstone Industries. From buckets to grapples, we have the tools you need to tackle any job with efficiency and strength.

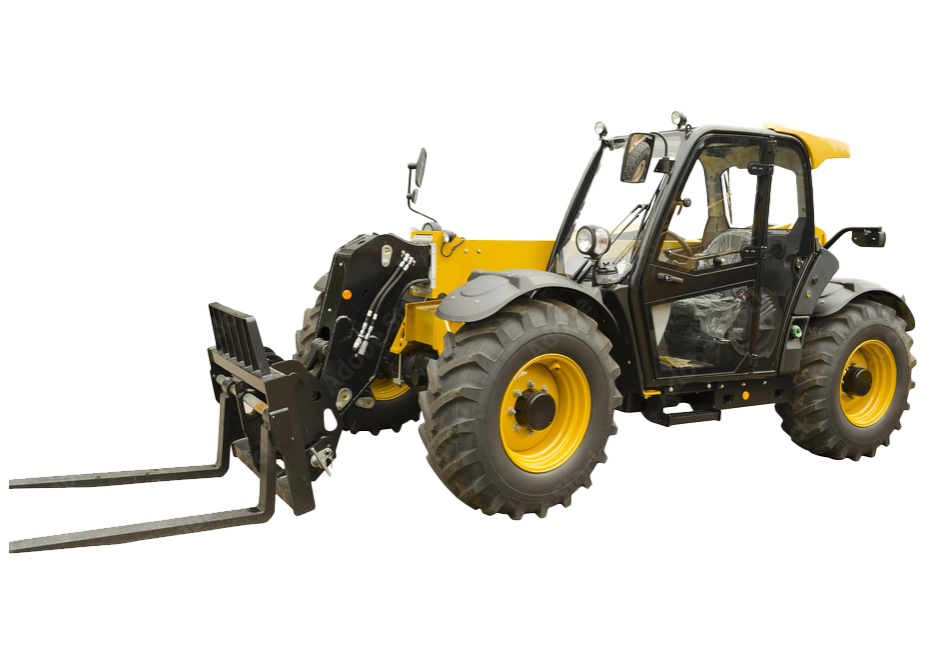

Telehandler Attachments
